Product

您的需求

  • 產品介紹 / Product introduction

         A, the machine model beautiful, delicate, provides maximum elbow room.

        B, single-chip computer control point mode, people, machine dialogue operation, convenient and flexible.
        C, bending angle encoder track and the use of feedback information, the bending angle accuracy.
        D, store multiple sets of processing mode, flexible switching between programs with different specifications.
        E, with automatic counting and intended function of power in mind.
        F, equipped with a hydraulic cooling system to ensure stable operation of the machine for a long time.
        G, the unique air-cooled and water cooled design, to ensure the stability of the hydraulic system; unique copper on both sides of the slider, the slider will not wear the nose.

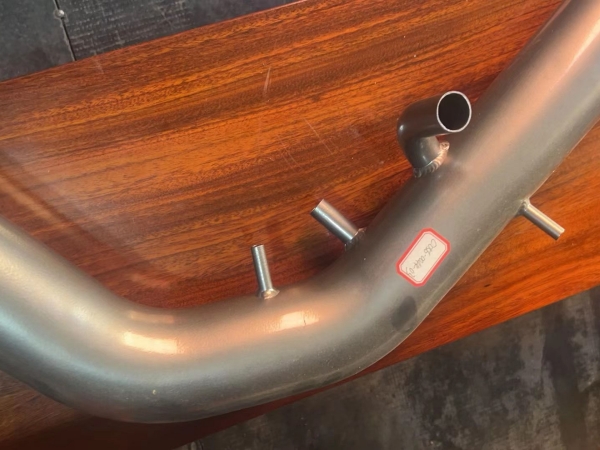

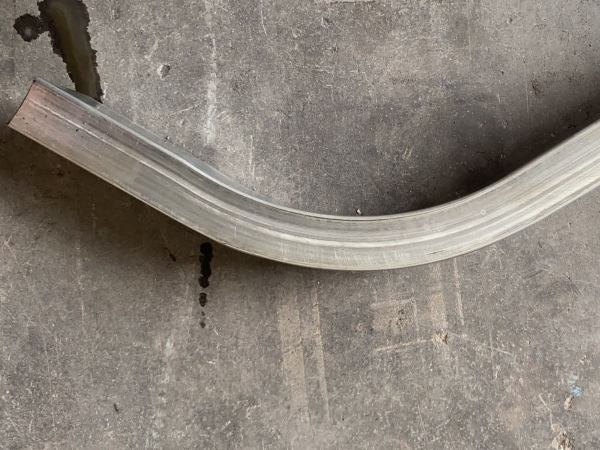

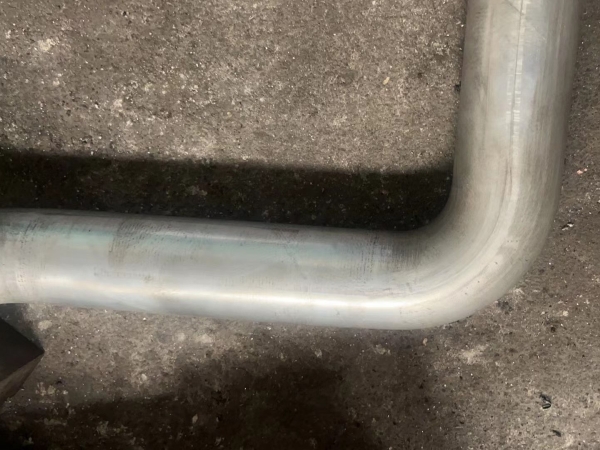

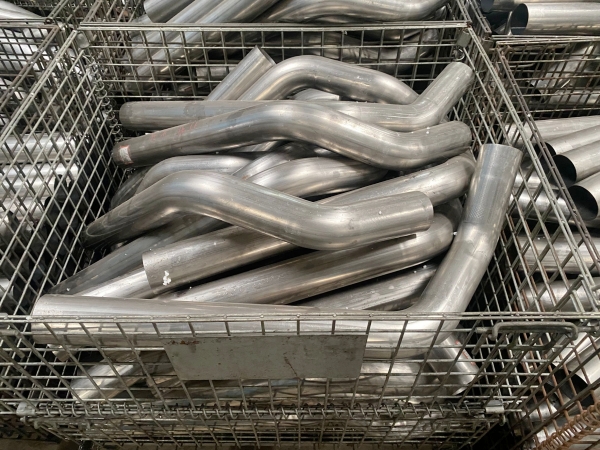

    產品細節展示 / Product Details display
  • 機器特點 / Machine features

          A、 機器造型美觀、精巧,提供了最大彎管空間。

          B、 采用單片機控制角摸式人、機對話操作,方便靈活。

          C、 彎曲角度采用編碼器跟蹤并回饋信息,彎曲角度精度高。

          D、 存儲多組加工模式,不同規格程序之間靈活切換。

          E、 具有自動記數和停電記意功能。

          F、 配備液壓冷卻系統,保證機器長時間穩定工作。


    主要技術參數 / Main technical parameters

    Maximum   bending capacity mm

    Φ219×   12

    Bending   radius (mm)

    350-1100

    Maximum   bending angle

    185   °

    Maximum   pressure (Mpa)

    14

    Hydraulic system motor (kw)

    2*22

    Through the effective core length (mm)

    6500

    Machine dimensions (m)

    9 × 2.5 × 2

    Weight (kg)

    24000


    因技術更新,網站所展示內容可能存在誤差,具體詳情請咨詢我們!
